Peanut Shell Hammer Mill Machine Coconut Husk Grinder With Feed Hopper

Product Categories
Tianjin Mikim Technique Co., Ltd.
Contact Now

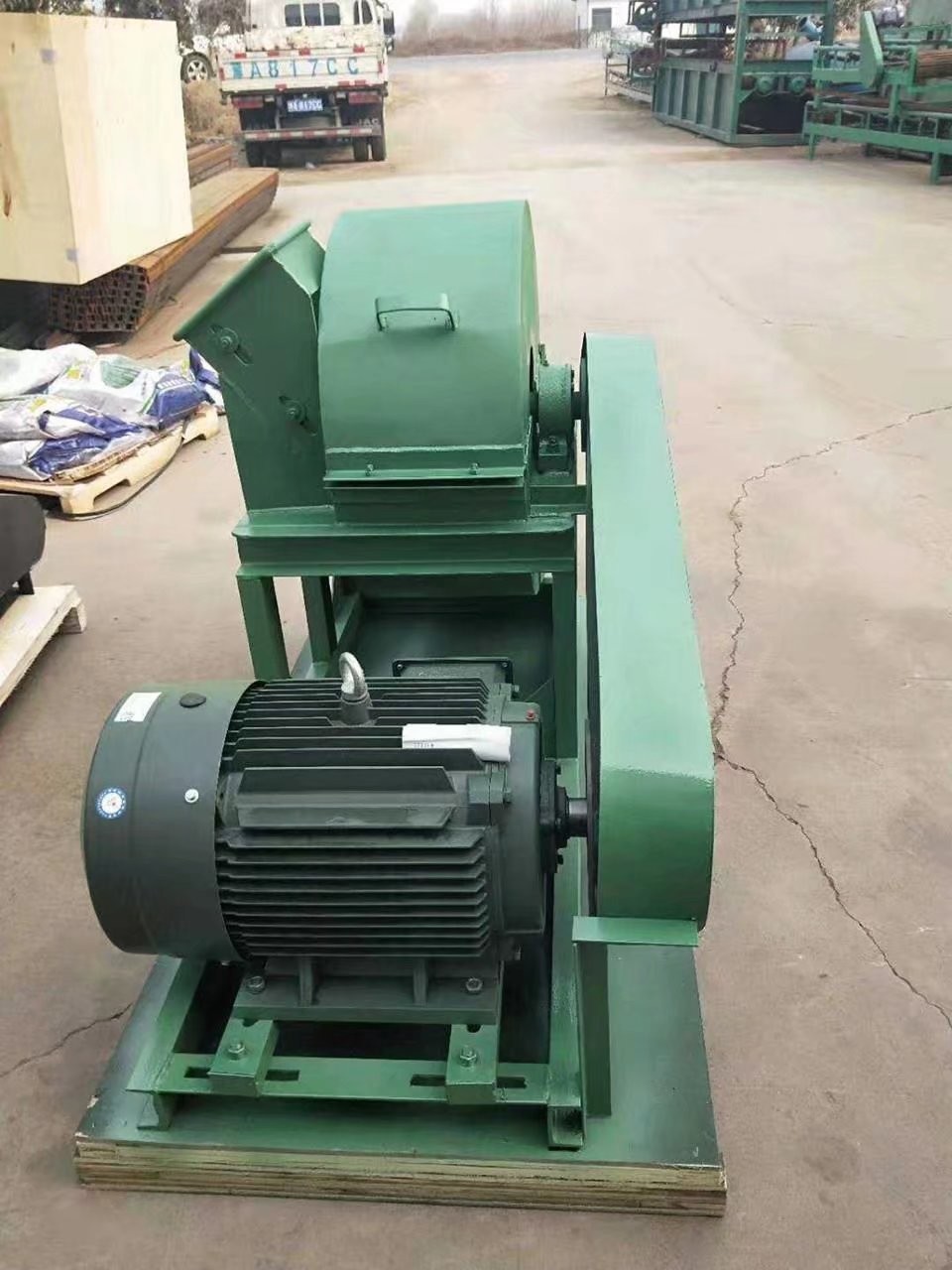

Peanut Shell Hammer Mill Machine Coconut Husk Grinder With Feed Hopper

  • 1
  • 2

Brand Name : MIKIM

Model Number : SFSP56×36

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : $500.00 - 910.00/ Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 sets per month

Delivery Time : 7-10 work days

Packaging Details : packed by wooden export package or loading by container

Name : Mobile Hammer Mill Machine Wood Grinder Crusher Machine For Sawdust Powder

Voltage : 380V

Type : Mill Machine

Quantity of the hammers : 56pcs

Dimension(L*W*H) : 610*635*780mm

Capacity(t/h) : 650-800kg/h

Contact Now

Wood Sawdust Hammer Mill Peanut Shell Crushing Machine Coconut Husk Crushing Machine

There are three main parts in the whole wood hammer mill: feed hopper, grinding cell, winding system. Cyclone is sold separately which can be used to collect wood particles and dust and reduce its harm to human.

1. While working, wood material is fed into the crushing chamber though feed hopper. Crushed by high speed rotating hammer, large particles hit the gears with strong impact force. Got repetitive collision and friction press from hammers and gears, raw material is gradually being ground into small chips and sawdust.

2. These light wood particles are blowing out wood hammer mill with the help of winding machines. If there is not cyclone on your machine, light wood chips will be blowed everywhere and you should place a dust bag to gather them. If your wood hammer mills are equipped with a cyclone, these crushed wood chips will be automatically separated from strong airflow.

Model Power Voltage V/ 50 Hz Sieve Screen Size Capacity Packing Size
CF158 2.2kw 380v 360*160 mm 60-120kg/h 48*58*63 cm
CF198 4kw 380v 510*200 mm 200-300kg/h 97*75*64 cm
CF420B 7.5kw 380v 680*280 mm 200-400kg/h 112*82*107 cm
CF420C 11kw 380v 680*280 mm 200-500kg/h 112*82*107 cm
CF500 22kw 380v 820*390 mm 800-1100kg/h 124*97*106 cm

Peanut Shell Hammer Mill Machine Coconut Husk Grinder With Feed Hopper
